Hatch packing

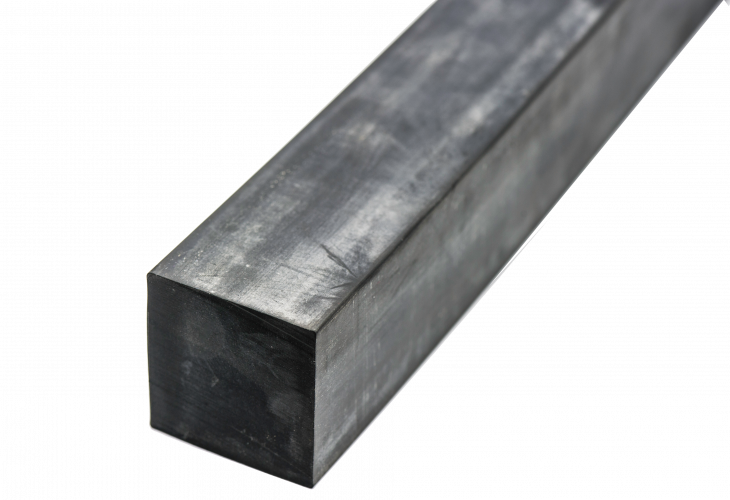

Style 8011 - Hatch Packing Solid Rubber No Chamfer

Homogenous rubber hatch packings are constructed from special media, salt and weather resisting compounds. There are virtually no dimensional limitations, and the corners & angles can be molded or vulcanized to your specifications.

Phelps staff has decades of experience assisting customers in selecting a replacement for existing hatch gasket, and helping in design and problem-solving for extreme applications.

For material other than listed here, or other special requests please call us @ 1-800-876-SEAL, or add detailed notes after clicking on "Request a Quote"
Phelps Style 8010 - Neoprene, EPDM, Buna Hatch Packing with no Chamfer
CUSTOMIZE AND SEND REQUEST
Specifications

Neoprene
Durometer:    50A±5
Temperature: -20°F/-29° to 170°F/77°C
Envirnment Compatibility: Good resistance to salt water, weather, ultra-violet, ozone, moderate oil resistance.

Ethylene Propylene
Temperature:  -40°F/-40° to 300°F/149°C
Envirnment Compatibility: Salt water, weather, ultra-violet, ozone, oils and solvents, ester based fluid, alcohol.

Buna-N
Temperature:  -20°F/-29° to 170°F/77°C
Envirnment Compatibility: Petroleum based lubricants, gasoline, fuel oils, alcohol.
