Style 1301 - Vulcanized Custom Gaskets

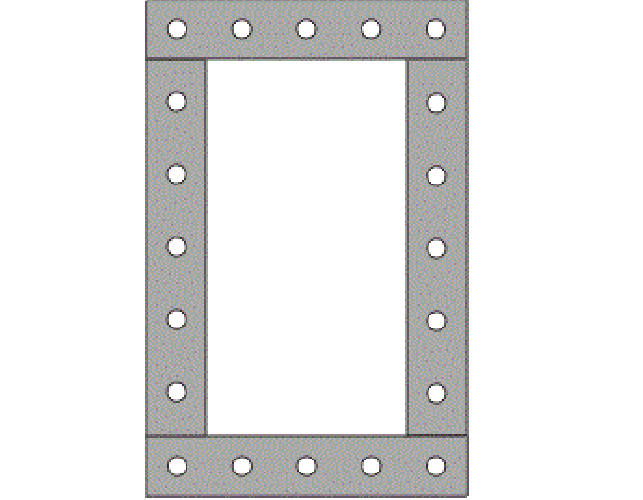

Large gaskets can be die cut segmented, then vulcanized into a one piece construction utilizing a matching polymer and a heat/pressure curing process (elastomeric material only).
We carry a wide range of materials, so if you don't find your material in the list, please call us @ 1-800-876-SEAL, or
Select "other" in the material drop-box and add notes after clicking on "Request a Quote"
Commonly Ordered Materials
Military Specification Neoprene
Severe outdoor environmental conditions
Workshop floors with exposure to dripping oils
Fueling stations, truck beds, under tanks for transport and shock absorption
Engine cowls, machine shops, weapons repair table and workstations
Rugged applications requiring tough, flexible, highly abrasion-resistant coverings
Mil-R-6855 CL2 GR 60
Hydraullic silicates, alkali, alcohol
Aliphatic hydrocarbons: gasoline, kerosene
Environments requiring resistance to flame
Refrigeration fluids, freon, low pressure oxygen, oil
Ozone, oxidation environment, water, weather elements and mild acids
Commercial Buna N-Nitrile
Water pump seals
Hydraulic actuator & pump seals
Carburetor & transmission seals
Durometer 40: ASTM D 2000 1BF 408 Z1, SAE J200 1BF 408 Z1
Durometer 50: ASTM D 2000 1BF 508 Z1, SAE J200 1BF 508 Z1
Durometer 60: ASTM D 2000 1BF 609 Z1, SAE J200 1BF 609 Z1
Durometer 70: ASTM D 2000 1BF 710 Z1, SAE J200 1BF 710 Z1
Z1 = Meets basic requirements for BF materials
Aliphatic hydrocarbons: Gasoline, Kerosene
Hydraulic silicates, alcohol, gases, and petroleum lubricants
Phosphate Ester Hydraulic Fluids
Extremely high concentrations of Aromatic Hydrocarbons
2.6 lb (50 durometer material)
2.7 lb (60 durometer material)
2.7 lb (70 durometer material)
Ethylene Propylene, EPDM
Washers, seals, and gaskets
Silos & storage tank seals
Weather stripping & roofing material
Bumpers, architectural & window seals
Medical equipment seals, electrical connector seals
Condensate tubing for HVAC equipment, Compressor Grommets
Seals for electronics & electrical equipment, and outdoor electrical enclosures
50 Durometer: ASTM D 2000 3BA 508 C12, SAE J200 3BA 508 C12, MIL R-3065 RS 508 C1
60 Durometer: ASTM D 2000 3BA 608 C12, SAE J200 3BA 608 C12, MIL R-3065 RS 608 C1
70 Durometer: ASTM D 2000 3BA 708 C12, SAE J200 3BA 708 C12, MIL R-3065 RS 708 C1
Ozone, UV, saltwater and weather.
Water, steam, and oxidating environments
Very good low temperature flexibility
Good impact and abrasion resistance
Hydraulic phosphates and silicates, alkali, acids depending upon type and strength
2.6 lb (60 durometer EPDM)
2.7 lb (70 durometer EPDM)
Silicone
Insulators, and HVAC applications
Electrical sleevings, EMI gaskets
Wall transitions, Floor profiles
Oven door gaskets, conveyor belts
Window and door seals, sealing gaskets
Gasket applications in Mass Transit systems
Vibration dampers for engine mounts and drive shaft, exhaust pipe hangers
AMS 3202 ZZR 765 CL2 GR 50
ASTM D 2000 3BA 608 A14 C12 F17
Chemicals, including some acids and alkali solutions
Weather, water, ozone, oxidation, hydraulic phosphates, food, alcohol
Concentrated alkalines, acids, solvents, oils and fuels
Commercial Viton®
Flange gaskets for glass-bodied valves in a paper bleaching plant
Corrosion-resistant expansion joints for stack gas exhaust ducts
High vacuum seals, crankshaft seals, valve stem seals, transmission seals
Fuel seals, cap-seals, head & intake manifold gaskets, radial lip seals used in pumps
Door seals, duct couplings, shaft seals, and various static gaskets for commercial drycleaning
Compression pads for heavy-duty vibration mounts, clamp cushions, conveyor rolls, deflector rolls
Gaskets for proportioning pumps that handle highly reactive chemicals carried by ocean and highway trailers
ASTM 2000 MZH K70 7B 37E F31 F15
Best for petroleum derivative at elevated temperatures
Aliphatic hydrocarbons: gasoline, kerosene
Aromatic hydrocarbons: benzol, toluol, alcohol, acid, synthetic diester lubricants,
Halogenated degreaser solvents, hydraulic silicates
Poor resistance to alcohols and nitro-containing compounds
Novaphit SSTC Flexible Graphite Inserted With Stainless Steel Wire Mesh
Applications requiring high thermal conductivity
Suitable for high pressure and high temperature environments
Excellent gasketing material for sealing high temperature valves, shafts, and flanges
ASTM F 36 J:
Compressibility: 25% - 40% | Recovery: >/= 15%
DIN 3535: Permeability To Gas: </= 1 cm3/min
DIN 28090-2:
Compressibility @ Ambient Temp: 37% - 38% | Recovery @ Ambient Temp: 4%
Creep @ 572F/300C: 1% - 2% | Recovery@ 572F/300C: 4%
DIN 28090S: Specific Leak Rate: .05 mg/s*m
Siemens AV 9-014 - Chloride Content: < 300 ppm
ASTM F 164 (Media Resistance)
@ 302F (150C), for 5h, and ASTM Oil No. 3: Change in Weight: 35% | Change in Thickness: 10%
@ 73F (23C), for 5h, and ASTM Fuel B: Change in Weight: 25% | Change in Thickness: 5%
High thermal conductivity
Impermeable to gases and fluids
Resistant to organic, inorganic acids, solvents, hot wax and oils
Chloric acid and molten alkaline and alkaline earth metals
Strong oxidizing compounds such as concentrated nitric acids, high concentrated sulfuric acids
At 347F/175C: 45 N/mm2
At 572F/300C: 43 N/mm2
High Grade Viton®
Weather, water, ozone, oxidation
Aliphatic hydrocarbons: gasoline, kerosene
Petroleum derivative at elevated temperatures
Aromatic hydrocarbons: benzol, toluol, alcohol, acid, synthetic diester lubricants, halogenated degreaser solvents, hydraulic silicates
Food Grade Nitrile
ASTM D2000 1BG 610
FDA-approved ingredients per 21CFR 177.2600
Food, water, and alcohol (food processing plants, breweries)
Applications requiring resistance to pteroleum based an animal based oils
Pure Gum Rubber
Gasket and sand/shot blast curtain manufacturing
Squeegee applications, window cleaning equipment
Practice pads, drum pads, gaskets for irregular flanges
Gasketing applications that require bounce and stretch capability
Industrial skirting application, used to manufacture sleeves for chutes on cement mixers
Water movement tools, or machines required to move water such as ice skating rink equipment
Most organic salts and ammonia
Water, oxidation, alcohol, chlorine
Applications requiring high tear and compression set
Without special additives, it has poor resistance to sunlight, oxygen, ozone, and high temperatures.
Red Rubber (ASTM D 1330.85 Grade 2)
ASTM D 1330.85 Grade 2
ASTM D 2000 1AA 704 Z1
Waste water, sludge and slurry
Oxidating environment, and alcohol exposure
Impact and abrasive application
Red Rubber (ASTM D 1330 Grade 1)
ASTM D 1330 Grade 1
Cold and warm water applications
Impact and abrasive applications
