Style 1303 - Custom Hand Cut Gaskets

Many a times customers need gaskets that have too hard geometry to qualify for die-cutting. Even more complex cases demand materials that may not be suitable for waterjet and laset jet cutting. To solve these unique requirements, Phelps has vast experience in hand-cutting with the help of precision instruments.

We carry a wide range of materials, so if you don't find your material in the list, please call us @ 1-800-876-SEAL, or
Select "other" in the material drop-box and add notes after clicking on "Request a Quote"

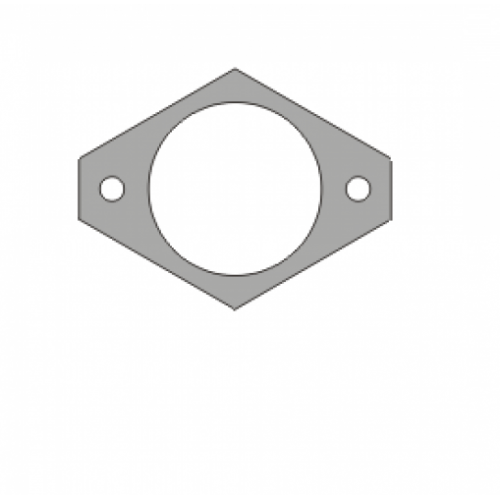

Phelps Style 1303 - Hand-Cut Custom Gasket
CUSTOMIZE AND SEND REQUEST

Attach spec, CAD/CAM, pictures of application, gasket etc.

REQUEST A QUOTE
Applications
Manufacturers of instruments, strainers, compressors, computers, centrifugal pumps, sound control units, gearboxes, boilers, hand tools, cooling towers.

Commonly Ordered Materials

Gasket Material Selection Guide
NOVATEC 825F Engineered Graphite
NOVATEC 925F Engineered Graphite
Compressed Aramid Fiber With Buna-N Nitrile Binder

Ethylene Propylene, EPDM

Washers, seals, and gaskets
Silos & storage tank seals
Weather stripping & roofing material
Bumpers, architectural & window seals
Medical equipment seals, electrical connector seals
Condensate tubing for HVAC equipment, Compressor Grommets
Seals for electronics & electrical equipment, and outdoor electrical enclosures

Temperature
-40°F/-40°C to 250°F/121°C
Durometer
50 through 70
Specifications

50 Durometer: ASTM D 2000 3BA 508 C12, SAE J200 3BA 508 C12, MIL R-3065 RS 508 C1
60 Durometer: ASTM D 2000 3BA 608 C12, SAE J200 3BA 608 C12, MIL R-3065 RS 608 C1
70 Durometer: ASTM D 2000 3BA 708 C12, SAE J200 3BA 708 C12, MIL R-3065 RS 708 C1

Elongation
300% - 150% minimum (depending on durometers 50 through 70)
Tensile
800 PSI minimum
Compatible exposure
Chlorine, salt water, MEK
Ozone, UV, saltwater and weather.
Water, steam, and oxidating environments
Very good low temperature flexibility
Good impact and abrasion resistance
Hydraulic phosphates and silicates, alkali, acids depending upon type and strength
Weight
2.5 lb (50 durometer EPDM)
2.6 lb (60 durometer EPDM)
2.7 lb (70 durometer EPDM)
