Open Cell Sponge

Style 7453 - Medium-Firm Open Cell Sponge Rubber

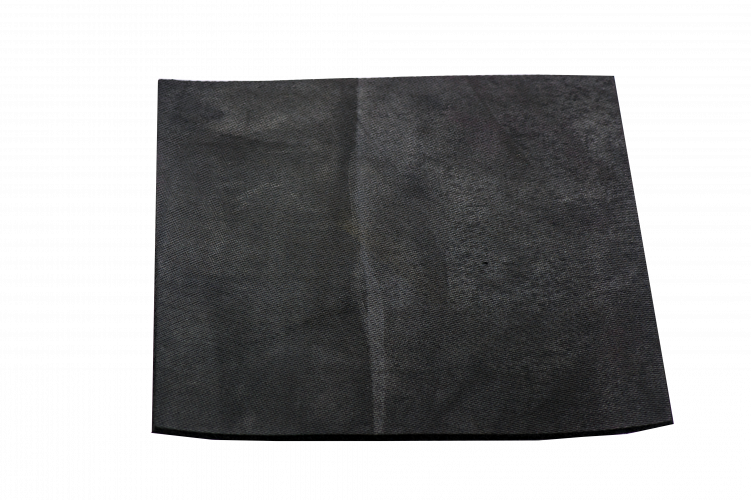

This material is an open cell medium-firm density rubber sponge that provides an excellent general purpose cushioning material. This material compresses within itself and has excellent recovery; therefore it makes an excellent die-ejection material. Full rolls, part rolls and sheets are available with the option of pressure sensitive adhesive.

For dimensions / thickness, and other options other than the ones listed here, please call us @ 1-800-876-SEAL, or add notes after clicking on "Request a Quote"

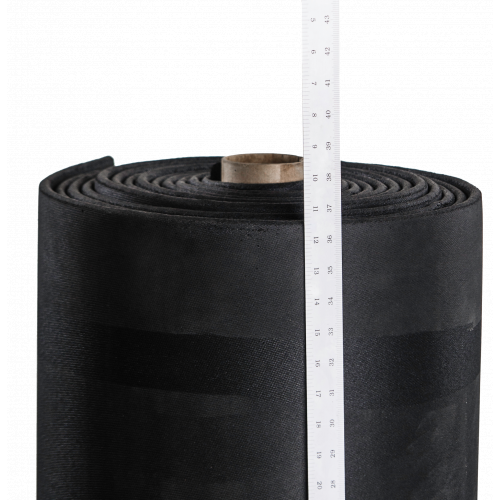

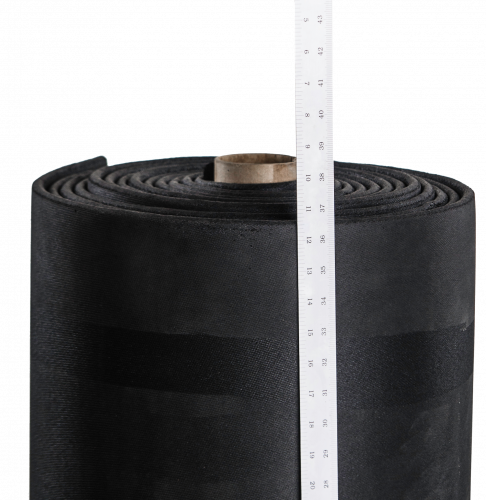

Phelps Style 7453 - Open Cell Commercial Sponge Rubber Roll (Medium-Firm Density)

CUSTOMIZE AND SEND REQUEST
Temperature
-40°F/-40°C to 160°F/71°C
Applications

Excellent general purpose cushioning material
Skid resistant surface (manufacturing shop floors etc.)
Ideal material for die-ejection applications

Specifications

HH-F-341A
ASTM D 1056-73
ASTM D 1752-67 Type 1
Mil-C-3133 STD 670A
Mil-R-6130 Type 1 GR 1

Density
Medium-Firm (ASTM D1056: 30 lb / cubic feet)
Compression Set
After 50% deflection, 15% maximum
Compression Deflection
25% @ 10-15 PSI
Environmental Exposure
Ozone resistant
Great resistance to oxidation
Not resistant to oils or solvents
