Cloth Inserted Elastomers

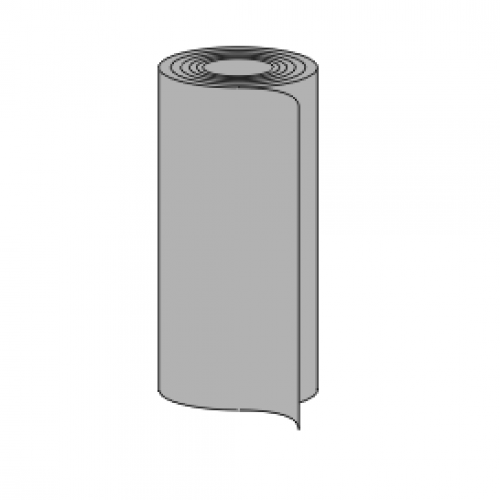

Style 7332 - Neoprene Diaphragm
This gasket sheet combines the high grade neoprene compound with strengthening insertions of Polyester. Ideal for high pressure diaphragm service in a variety of oils and petroleum media. Full rolls, part rolls and sheets are available
For length / width / thickness options other than listed here, please use live web-chat or call us @ 1-800-876-SEAL - our material experts are here to help
CUSTOMIZE AND SEND REQUEST
Temperature
-20°F/-29°C to 190°F/88°C
Applications
Ideal for high pressure diaphragm service
Gasket for Sealing, Insulating, Isolating applications
Sealing diaphragm material in pumps, valves and air control equipment
Durometer
70A±5
Specifications
Mullen Burst Test: 1 dia. orifice, 600 PSI minimum for 1/16" thick
Elongation
250% minimum
Tensile
1400 PSI minimum
Insertion
9 oz. Polyester: 1 Ply for 1/16" thickness, and 2 Ply for 1/8", 3/16", 1/4" thickness
Compatible Environmental
Weather, Water, Ozone, Oxidation
Exposure to tear, impact and abrasion
Aliphatic Hydrocarbons: gasoline, kerosene
Hydraulic silicates, oil, high pressure diaphragm service
Exposure to tear, impact and abrasion
Aliphatic Hydrocarbons: gasoline, kerosene
Hydraulic silicates, oil, high pressure diaphragm service
