Cloth Inserted Elastomers

Style 7331 - Cloth Inserted Rubber (Insertion: 8.5 oz. Polyester)

This gasket material which is economic and ideal for cold and warm water service is reinforced with a layer of single ply Polyester. Full rolls, part rolls and sheets are available from stock

For length / width / thickness options other than listed here, please use live web-chat or call us @ 1-800-876-SEAL - our material experts are here to help

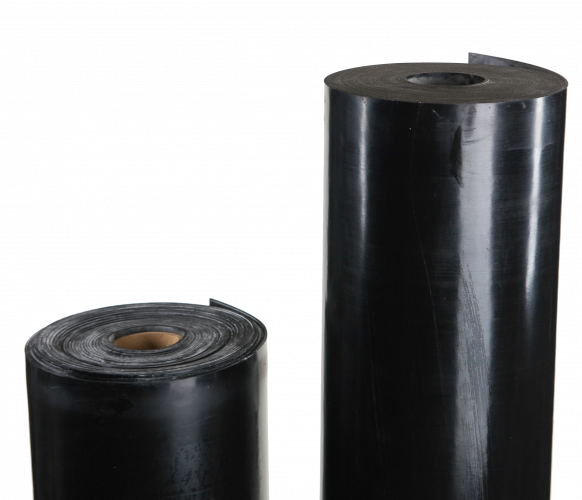

Phelps Style 7331 - Polyester Cloth Inserted Rubber Rolls
CUSTOMIZE AND SEND REQUEST
REQUEST A QUOTE
Temperature
-22°F/-30°C to 180°F/82°C
Applications

Control Devices, Welding Curtains
Meters, Regulators, Pumps, and Diaphragms
Applications requiring mechanical fastening, or heavy flange loading to reduce gasket creep

Durometer
80A±5
Elongation
200% minimum
Tensile
400 PSI minimum
Insertion
8.5 oz. single ply Polyester
Compatible Environmental
Extremely abrasive applications
Weather, Water, Ozone, Oxidation
Aliphatic hydrocarbons: gasoline, kerosene
Hydraulic silicates, oil, high pressure diaphragm service

Products Using This Material

Other Styles in the Cloth Inserted Elastomers

Cloth Inserted Rubber (Insertion: 3.5 oz. Polyester)

Neoprene Diaphragm
