Cloth Inserted Elastomers

Style 7328 - Cloth Inserted Rubber (Insertion: 3.5 oz. Polyester)

This gasket sheet combines the high grade neoprene compound with strengthening insertions of Polyester. Ideal for high pressure diaphragm service and extremely abrasive environments

For length / width / thickness options other than listed here, please use live web-chat or call us @ 1-800-876-SEAL - our material experts are here to help

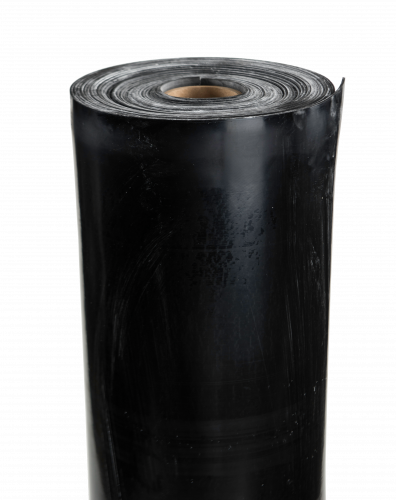

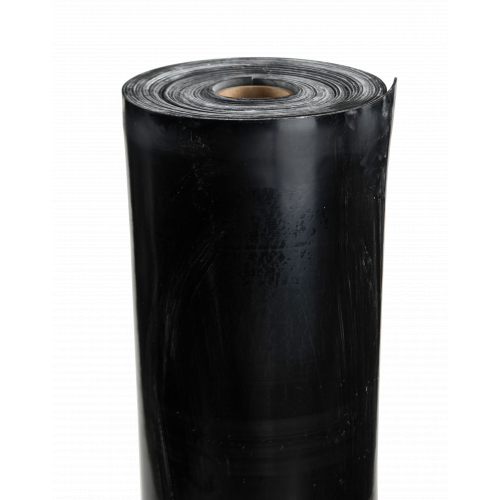

Phelps Style 7328 - Cloth Inserted Rubber Rolls
CUSTOMIZE AND SEND REQUEST
Temperature
-22°F/-30°C to 212°F/100°C
Applications

Control Devices, Welding Curtains
Meters, Regulators, Pumps, and Diaphragms
Applications requiring mechanical fastening, or heavy flange loading to reduce gasket creep

Durometer
70A±5
Elongation
250% minimum
Tensile
1000 PSI minimum
Insertion
9 oz. Polyester
Compatible Environmental
Extremely abrasive applications
Weather, Water, Ozone, Oxidation
Aliphatic hydrocarbons: gasoline, kerosene
Hydraulic silicates, oil, high pressure diaphragm service
