Non Elastomers

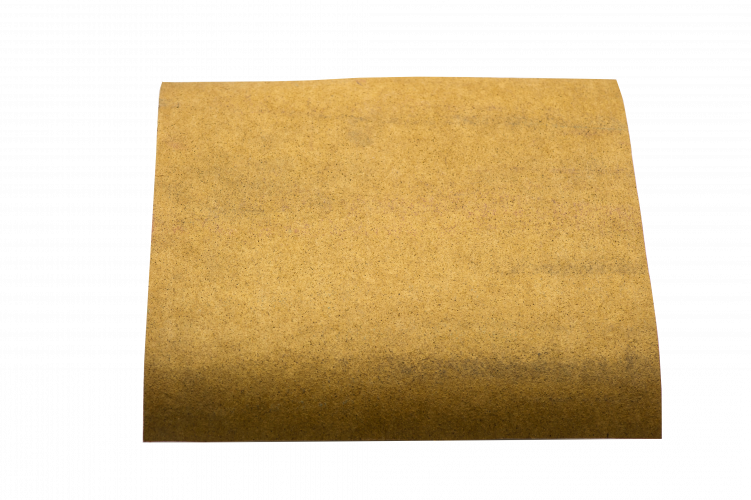

Style 7541 - Vegetable Fiber and Cork
This is a most economic gasket material with good resistance to fuel oils, gasoline and other aggressive media. This material can easlity conform and compensate for flange distortions. Available in thinner gauges than most other gasket material. Full rolls, part rolls and sheets are available.
For length / width / thickness options other than listed here, please call us @ 1-800-876-SEAL, or select "other" in the drop-boxes
CUSTOMIZE AND SEND REQUEST
Temperature
250°F/121°C
Applications
Recommended for sealing oils, gasoline, greases, benzine, gases, water and air
Specifications
SAE J90
ASTM F 104-93
ASTM D 1170-62T
Mil-G-12803A, B & C
Federal HHP-96G Type 1
Tensile
2000 PSI minimum
Compressibility
At 1000 PSI Load: 25-40%
Recovery: 40%
Recovery: 40%
Compatible environment and media
Water, Alcohol, Gases, and Air
Benzine, Naptha, Most Solvents
Oils, Gasoline, Keroene, Fuels, Greases
Benzine, Naptha, Most Solvents
Oils, Gasoline, Keroene, Fuels, Greases
Environment to avoid
Extreme heat, Steam
