Non Elastomers

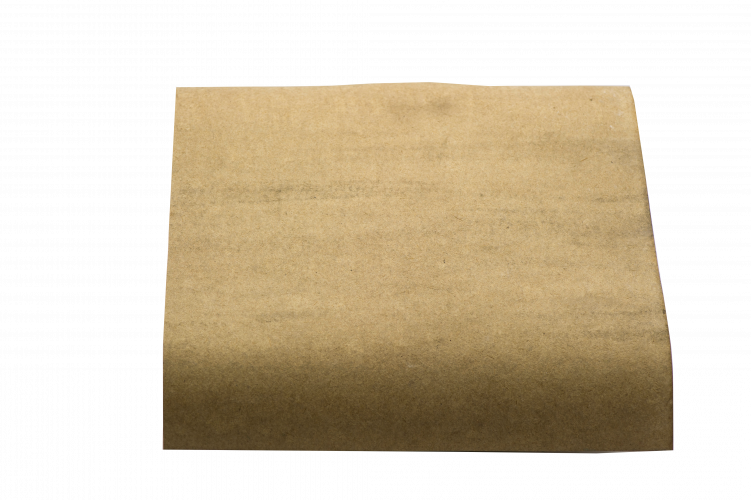

Style 7540 - Vegetable Fiber
This is a most economic gasket material with good resistance to fuel oils, gasoline and other aggressive media. This material can easlity conform, bend, and compensate for flange distortions. Vegetable fiber (also called detroiter) are well-suited for electrical applications requiring high dielectric strength. Available in thinner gauges than most other gasket material.
For length / width / thickness options other than listed here, please call us @ 1-800-876-SEAL, or select "other" in the drop-boxes
CUSTOMIZE AND SEND REQUEST
Temperature
250°F/121°C
Applications
Recommended for sealing oils, gasoline, greases, benzine, gases, water and air
Well-suited for electrical applications requiring high dielectric strength.
Specifications
SAE J90
Mil-G-12803A, B & C
ASTM F 104-93
ASTM D 1170-62T
Federal HHP-96G Type 1
Tensile
2000 PSI minimum
Compressibility
At 1000 PSI Load: 25-40%
Recovery: 40%
Recovery: 40%
Compatible environment and media
Water, Alcohol, Gases, and Air
Benzine, Naptha, Most Solvents
Oils, Gasoline, Keroene, Fuels, Greases
Benzine, Naptha, Most Solvents
Oils, Gasoline, Keroene, Fuels, Greases
Environment to avoid
Extreme heat, Steam
