Elastomers

Style 7197 - High Grade Viton®

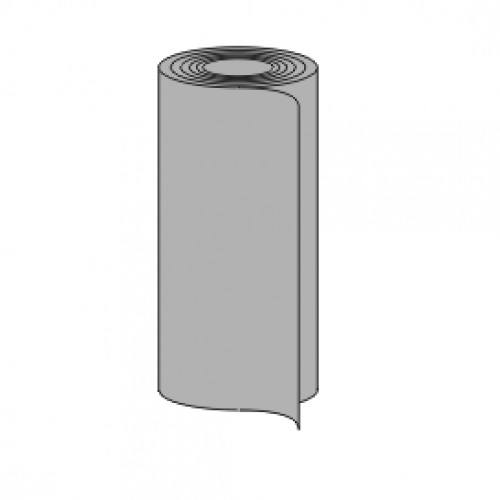

This material provides very good high temperature capability with resistance to a wide range of aggressive media. Full rolls, part rolls and sheets are available from stock.

For durometer, or length / width / thickness options other than listed here, please call us @ 1-800-876-SEAL, or select "other" in the material drop-box and add notes after clicking on "Request a Quote"
Phelps Style 7197 - High Grade Viton
CUSTOMIZE AND SEND REQUEST
Temperature
400°F/204°C Intermittent | 350°F/177°C Continuous
Durometer
75A±5
Specifications
ASTM 2000 MZHK707B37EF31F15
Elongation
350% minimum
Tensile
1000 PSI minimum
Compatible exposure
Abrasion applications
Weather, water, ozone, oxidation
Aliphatic hydrocarbons: gasoline, kerosene
Petroleum derivative at elevated temperatures
Aromatic hydrocarbons: benzol, toluol, alcohol, acid, synthetic diester lubricants, halogenated degreaser solvents, hydraulic silicates
