PTFE Packing

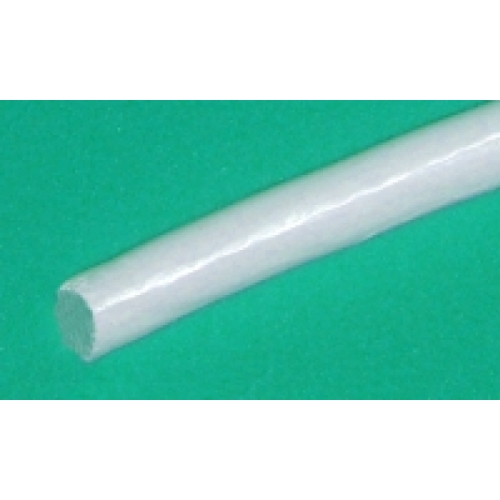

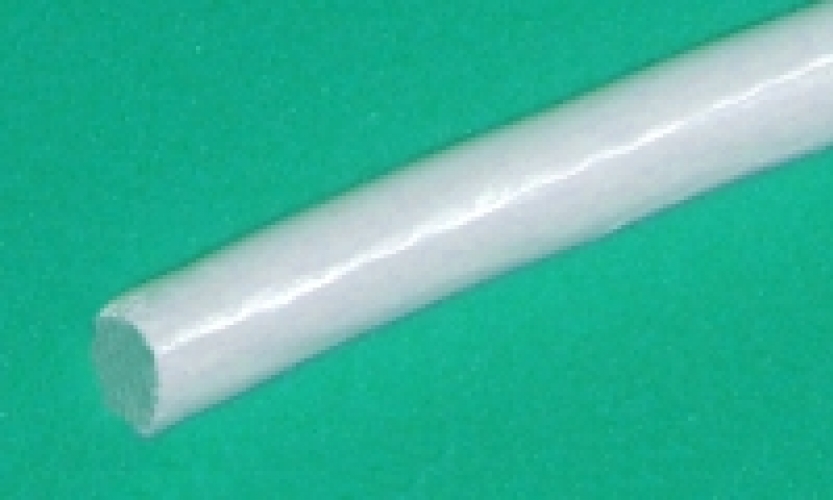

Style 2440 - Pure PTFE Cord/For Valves
Phelps Style 2440 is pure PTFE Cord for valves. This flexible valve stem packing is easy to install since valve disassembly is not required - simply wind the cord around the valve stem, push it down into the stuffing box and compress it by tightening the gland nut. The result in a perfect, high precision fit filling some of the flaws and irregularities caused by wear. Once Phelps Style 2440 is installed, a slight turn on the gland nut is all the maintenance usually required.
It is that simple !!
Equipments:
High pressures valves applications
Flange connections, Maintenance seals
Ideal for fragile glass, FRP, Ceramic, plastic flanges & lined pipe joints.
Graphite flanges in HCL, PVC & Nuclear plants.
Industries:
Pharmaceuticals
Process & Petrochemicals
Pulp and paper industry
Food & Beverage, Sugar Prococessing
Water treatment and waste water processing
Conforms with Mil-P-24396, Type B.
Minimized cold-flow and creep behavior
Practically eliminates stem wear.
Inexpensive, versatile, reduces inventory levels.
Sludges, slurries, waste from industrial processing
Petroleum oils and fuels, solvents, chemicals, liquified gas
