PTFE Packing

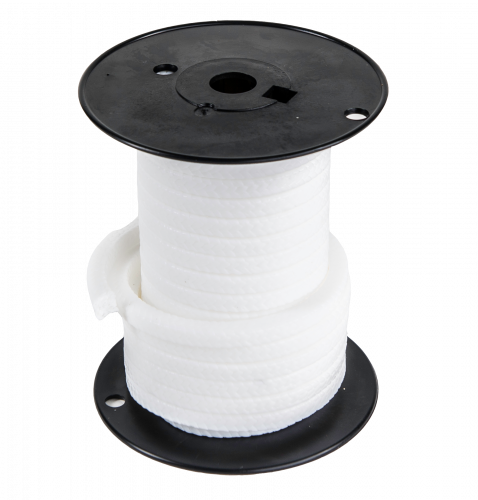

Style 2031 - Pure PTFE Packing - FDA (Food Grade)
Phelps Style 2031 is a FDA food-grade pure PTFE compresion packing, Centerlock® braided and thoroughly lubricated with a premium grade edible oil. This construction creates a multi-purpose packing for use in the food and drink industry, parmaceutical industry, and hospitals. Style 2031 offers hHigh degree of chemical resistance to a wide range of media.
CUSTOMIZE AND SEND REQUEST
pH
0-14
Pressure
Pumps: 300 PSI | Valves: 2000 PSI
Temperature
-400°F / -240°C to 550°F / 288°C
FPM
2000
Color
White
Composition
Pure PTFE (FDA - Food Grade)
Lubricant
Premium food grade oil
Applications
Designed for Food and drink industry equipments
Centrifugal, rotary and reciprocating pumps, Valves
Agitators and mixing equipment
Specifications
Complies with FDA and USDA requirements, title 21, paragraph 178.3570 (Lubricants), and paragraph 177.1550 (PTFE Fiber)
Environment Suitability
Edibles, air, water, sea water, brines, superheated steam
Sludges, slurries, industrial wast
Petroleum oils, petroleum fuels, solvents, chemicals
Sludges, slurries, industrial wast
Petroleum oils, petroleum fuels, solvents, chemicals
Competitor Equivalent
American Braiding: Style 344FDA
Chemstar: Style 154 FDA
Chesterton: Style 1725A / 425
Crane: Style 715 / C1056
Garlock: Style 5900, 5904
Teadit: Style 2006 FDA
Palmetto: Style 1367FS
Sepco: Style ML2236 FDA
Klinger: Style K54F
Utex: Style 245
Chemstar: Style 154 FDA
Chesterton: Style 1725A / 425
Crane: Style 715 / C1056
Garlock: Style 5900, 5904
Teadit: Style 2006 FDA
Palmetto: Style 1367FS
Sepco: Style ML2236 FDA
Klinger: Style K54F
Utex: Style 245
