Graphite Packing
Style 2110 - Pure Graphite and Inconel Wire

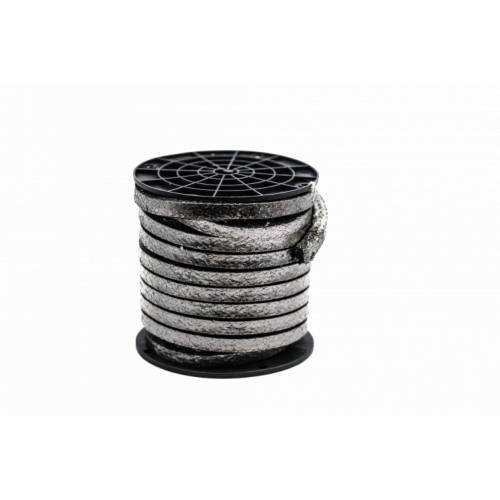

Phelps Style 2110 is a pure graphite compresison packing with inconel wire running down the center of each strand. All strands are braided into the required square cross section. This construction creates a mechanical packing that can withstand working pressure and temperature that are impressive especially in valves. Best high pressure valve packing
CUSTOMIZE AND SEND REQUEST
pH
0-14
Pressure
Valve 7000 PSI
Temperature
2000°F
FPM
Rotating pump: 1970 | Reciprocating pump: 390
Color
Shiny Grey-Black
Composition
Flexible pure graphite and inconel wire
Applications
Equipments:
Best packing for high temperature & pressure control and block valves
LP steam turbine valves, condensate line valves, manually valves, power recovery valves.
Sootblowers, agitators and mixers, hydropulpers, refiners, high & Low pressure feeders.
Industries:
Power Plants, Pulp & Paper Industry, Refineries & Petrochemical Plants
Wastewater Treatment, Sugar Plants, Marine Services
Max Size
2"
Material Advantages
The heat dispersion properties and compressibility of graphite, along with inconel reinforcement makes this the best valve packing for high temperature & pressure applications
Environment Suitability
Sludges, slurries, waste water
Air, water, sea water, brines, super heated steam
Petroleum oils, petroleum fuels, solvents, chemicals, hot gases
Air, water, sea water, brines, super heated steam
Petroleum oils, petroleum fuels, solvents, chemicals, hot gases
Avoid Exposure To
Highly oxidizing agents at high temperature
Oleum, fluorine, fuming nitric acid
Oleum, fluorine, fuming nitric acid
Competitor Equivalent
American Braiding: Style 5000I
Chemstar: Style 1414
Chesterton: Style 1800
Crane: Style G581
Garlock: Style 5413
Palmetto: Style 5000W
Teadit: Style 2421
Utex: Style 201/206
Sepco: Style ML 911W
Chemstar: Style 1414
Chesterton: Style 1800
Crane: Style G581
Garlock: Style 5413
Palmetto: Style 5000W
Teadit: Style 2421
Utex: Style 201/206
Sepco: Style ML 911W
