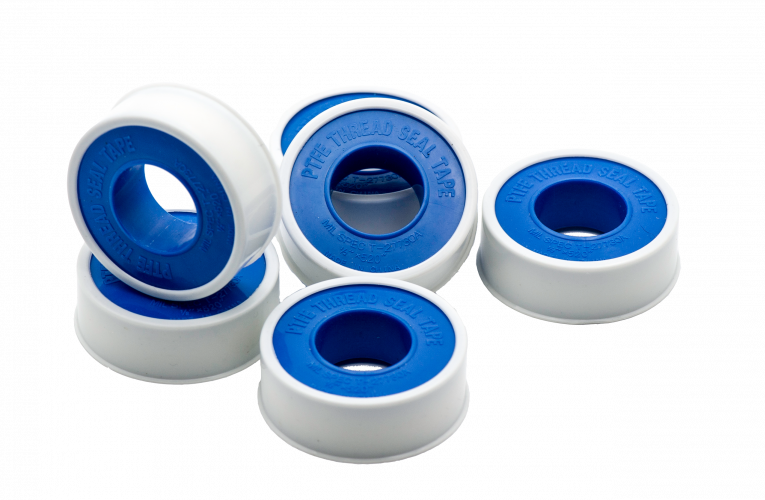

Style 9700 - PTFE Pipe Thread Tape

Phelps Style 9700 is a PTFE Pipe Thread Tape, which is extemely pliable non-hardening sealant made from 100% pure virgin PTFE. It is ideal for sealing all types of threaded connections, a single wrap will usually seal and will withstand wide range of media pH 0-14 at high and low pressures. PTFE tape is exceptionally resistant to a wide range of media including all acids and caustics including chemicals, aromatic fuels, steam, salt water, and gases.

Media Resistance: All acids and caustics including chemicals, aromatic fuels, steam, salt water, and gases. Caution: Should not be used on liquid oxygen.

Advantages: Does not harden with age, ensuring easy separation after prolonged service. It prevents joint corrosion and is permanently self lubricating. PTFE tape is fast, clean and easy to install.

Phelps Style 9700 - PTFE Thread Pipe Tape
CUSTOMIZE AND SEND REQUEST
pH
0-14
Temperature
-400°F/-240°C to 500°F/260°C
Color
White
Applications

Sealing all kinds of threaded connections including: plastic, ceramic, glass and steel pipe.
Does not harden with age, ensuring easy separation after prolonged service.
Prevents joint corrosion. Permanently self lubricating.
Fast, clean and easy to install. No material wastage.

Additional Notes
Installation Instructions: Hold end of tape on thread, wrap once around, stretching tape and overlap 1/2". Break tape and tamp down. Assemble joint in normal manner.
Specifications

Tape meets MIL-T-27730A.
