Frenzelit Compressed Gasket Sheet

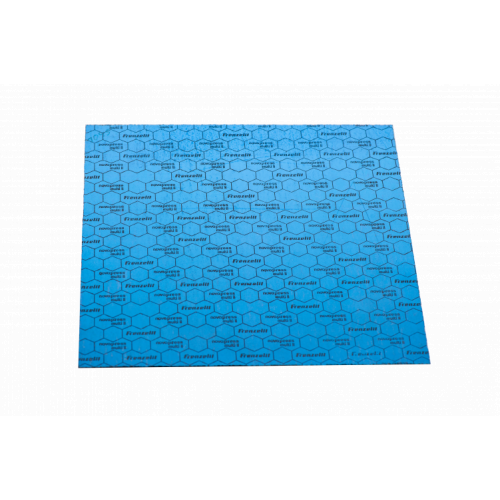

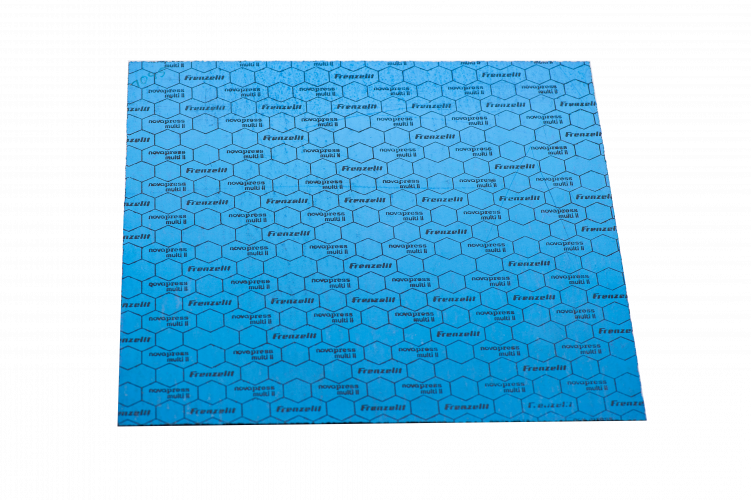

Style 7095 - Novapress multi II Compressed Graphite Composite
Novapress multi II compressed graphite composite is Frenzelit's high temperature, high pressure compressed gasket material. This sheet's high content of pure graphite has given it over decades of successful use in the field. This material can withstand maximum temperatures in continuous operation, have a pH rating of 2-14 and have a non-stick coating that allows used gaskets to literally fall off the flange.
For assistance chosing the right material for your application please call us @ 1-800-876-SEAL, or add notes after clicking on "Request a Quote"
ASTM F 104 Tests (for 1/32" thick material)
F 38B Creep Relaxation
22 hours @ 212°F (100°C): 10%
22 hours @ 392°F (200°C): 20%
F 37B Sealability
Fuel A @ 14.5 PSI/Gasket Load 2500 PSI: 0.1 ml/hr
F 146 Thickness Increase
Oil #3, 5 Hrs @ 300°F: < 15%
Fuel B, 5 Hrs @ 73°F: < 10%
F 36A
Compressibility at 5000 PSI Gasket Load: 7-15%
Recovery 50%
DIN 3535 Part 6 Gas Permeability
Nitrogen @ 580 PSI/Gasket Load 4640 PSI: 1.0 cc/min
DIN 52913 Stress Relaxation @ 7250 PSI:
For 16 Hrs @ 347°F: > 6500 PSI
For 16 Hrs @ 572°F: > 5075 PSI
DIN 3754 48 Hrs @ 75oF Thickness Increases
H2S04 Sulfuric Acid 65% Concentration: 30%
Na0H Sodium Hydroxide 25% Concentration: 15%
