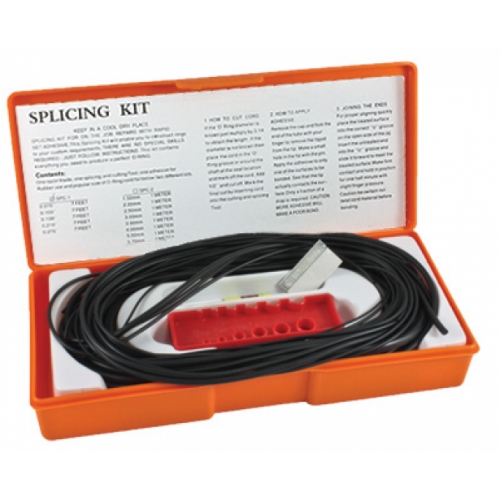

Style 8550 - Metric & Standard O-Ring Splicing Kit
Phelps Style 8500 is U.S. Industrial Standard with sturdy storage/display case with complete dimension chart, contains 436 'O' Rings, in the 36 most popular sizes.
O-Ring Kits are an indispensable maintenance related item and should be inventoried in every storeroom. 'O' Rings are the most widely used seal, and no seal lasts forever! So often very costly downtime can be avoided simply by the right 'O' Ring being at hand. Phelps O-Ring kits have been carefully designed to handle the widest variety of applications at the lowest cost and require minimal shelf space.
CUSTOMIZE AND SEND REQUEST
Specifications
This Phelps O'Ring kit contains the following O'Ring sizes and quantities
| Quantity | Nominal Sizes | AS SeriesDash Nos. | ||
| I.D. | O.D. | W. | ||
| 25 25 25 25 25 25 25 | 3/32" 1/8" 5/32" 3/16" 7/32" 1/4" 5/16" | 7/32" 1/4" 9/32" 5/16" 11/32" 3/8" 7/16" | 1/16" 1/16" 1/16" 1/16" 1/16" 1/16" 1/16" | -005 -006 -007 -008 -009 -010 -011 |
| 15 | 3/8" | 1/2" | 1/16" | -012 |
| 10 10 10 10 10 10 | 7/16" 1/2" 9/16" 5/8" 11/16" 3/4" | 9/16" 5/8" 11/16" 3/4" 13/16" 7/8" | 1/16" 1/16" 1/16" 1/16" 1/16" 1/16" | -013 -014 -015 -016 -017 -018 |
| 15 | 3/8" | 9/16" | 3/32" | -110 |
| 10 10 10 10 10 10 | 7/16" 1/2" 9/16" 5/8" 11/16" 3/4" | 5/8" 11/16" 3/4" 13/16" 7/8" 15/16" | 3/32" 3/32" 3/32" 3/32" 3/32" 3/32" | -111 -112 -113 -114 -115 -116 |
| 7 7 7 7 7 | 13/16" 7/8" 15/16" 1" 1 1/16" | 1" 1 1/16" 1 1/8" 1 3/16" 1 1/4" | 3/32" 3/32" 3/32" 3/32" 3/32" | -117 -118 -119 -120 -121 |
| 10 10 | 3/4" 13/16" | 1" 1 1/16" | 1/8" 1/8" | -210 -211 |
| 7 7 7 7 7 7 7 7 | 7/8" 15/16" 1" 1 1/16" 1 1/8" 1 3/16" 1 1/4" 1 5/16" | 1 1/8" 1 3/16" 1 1/4" 1 5/16" 1 3/8" 1 7/16" 1 1/2" 1 9/16" | 1/8" 1/8" 1/8" 1/8" 1/8" 1/8" 1/8" 1/8" | -212 -213 -214 -215 -216 -217 -218 -219 |
