Adhesives & Sealants

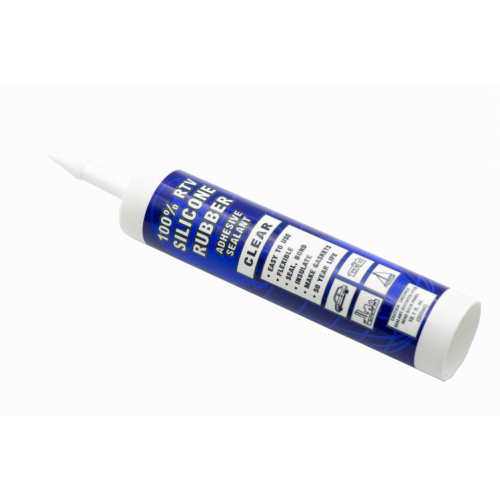

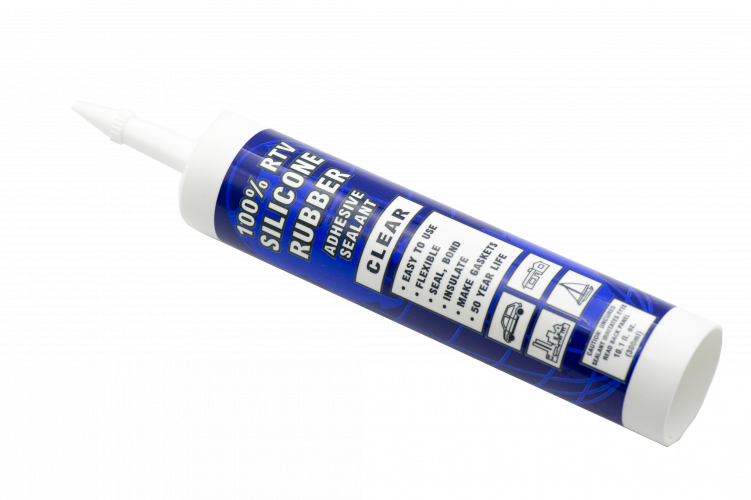

Style 9816 - Silicone Sealant
Phelps Style 9816 is 100% silicone sealant. This product can be used for gasketing and as an adhesive, and sticks to metal and glass surfaces. For best results clean with a solvent such as xylol, toluol or methyl ethyl ketone. Phelps Silicone Sealant exhibits high degree of flexibility without compromising strength. This silicone sealant resist extreme temperatures and continue to perform for much longer periods than other adhesives. Stye 9816 blocks the passage of water or other liquids and do not degrade with humidity, while retaining insulating characteristics over a very large temperature range – from 45° to 180°C. These qualities make them particularly suitable for electrical equipment.
Construction Applications:
Wooden floor, swimming pool, structural glazing of skyscraper with a glass façade
Connection joints between the construction material and functional elements
Weather sealing of glass windows, and other structrual components
Indoor floor joints between the floor covering and wall, indoor corner butt joints where walls meet
Industrial Applications:
Sealing fired heaters, flanged pipe joints, access doors
Sealing Moving oven belts, industrial ovens and boilers, plywood drying ovens
Sealing bag filters on smokestacks, and flues on gas appliances
Bonding appliance parts and electrical and electronic equipment
Caulking joints in sheet metal stacks and ductwork
| Processing: | |
| Tooling Time | 5 - 10 minutes |
| Tack Free Time @ 75F (24C) 50% RH | 15 minutes |
| Run on Sag | NiL |
| Shelf Life Stored @ or Below 90F (32C) | 1 Year |
| Physicals: | |
| Durometer (After 7 Days @ 77F /25C + 50% RH) | 25 |
| Tensile Strength, PSI (Mpa) | 350 (1.9) |
| Elongation | 500% |
| Specific Gravity | 1.04 |
| Tear Strength PPI (N/m) | 30952.5 (10.2) |
| Meets Following Specifications: | |
| FDA Criteria | Pass |
| USDA Criteria | Pass |
| NSF Std. 51 | Pass |
| UL | Approved |
| US Federal Specifications: | |
| TT-S001543A | Pass |
| TT-S-00230C | Pass |
| Canadian Specifications: | |
| 19-GP-9MA, Type 1 | Pass |
| Electrical Properties - (Cured 7 Days @ 77F / 25C + 50% RH) | |
| CTM 0114 Dielectric Strength, Volts/Mil CTM 0112 Dielectric Constant At 100 Hz CTM 0112 Dielectric Constant At 100 KHz | 390 2.53 2.49 |
| CTM 0112 Dielectric Factor At 100 Hz CTM 0112 Dielectric Factor At 100 KHz | 0.0087 0.00307 |
| CTM 0249 Volume Resistivity, ohm-cm | 1.70 x 1014 |
