As key part of the industrial world, Pumps & Valves can be found in Power Generation, Oil & Gas drilling, Water Management, Petrochemicals, Food Processing, Marine, and in the minute sterile components used within medical instrumentation.
Therefore, Pumps & Valves come in contact with a wide variety of media such as Water, Oils, Harsh or Volatile Chemicals, Gasses, and Abrasive Media like Ash and Slush. As the conditions vary, so do the choice of materials. Our 75 years of expertise in fluid sealing products makes us a perfect partner for our customers.
Common Applications
- Standard and Non-Standard Pump Flanges
- Compression and Gland Packing for the Stuffing Box
- Mechanical Seals for a longer term solution for fluid leaks
- Strainer Pumps
Typical Operating Environment
- Hot & Cold Water, Steam
- Hydrocarbons, Oil, Oil Derivatives, Gas, Chemicals
- Sludge, Slurry, Sewage
- Light to Highly abrasive media such as Ash and other Dredging applications
- Salt or Saline water
- Corrosive fluids
- High Pressure Fluids
Gaskets
Standard flange gaskets are manufactured to be compatible with ANSI flanges in accordance with dimensional criteria shown in API Standards 601 and 605. A wide range of tooling contributes to our total capability to supply all standard sizes in 125/150 lb., 250/300 lb., ring and full face styles. We are also fully tooled for a specialized range of full face gaskets specified by the Department of Defense for use by the Departments of the Army, Navy, and Air Force.
Materials mentioned in this brochure are a small sample of our inventory, and represent the most commonly ordered materials. Matching PTFE envelopes are also available from stock, adding the flexibility to cope with extremely harsh chemical applications. As a major manufacturer of standard and military flange gaskets, our high speed production methods enable us to supply very competitively priced gaskets in large or small quantities”
Materials mentioned in this brochure are a small sample of our inventory, and represent the most commonly ordered materials. Matching PTFE envelopes are also available from stock, adding the flexibility to cope with extremely harsh chemical applications. As a major manufacturer of standard and military flange gaskets, our high speed production methods enable us to supply very competitively priced gaskets in large or small quantities”
Standard Flange Gaskets - Style: 1015, 1030
Ring Gaskets for 150 lb/300 lb ASME/ANSI Pipe Flanges
Standard Flange Gaskets - Style: 1115, 1130
Full Face Gaskets for 150 lb/300 lb ASME/ANSI Pipe Flanges
Material
An integral element of our exceptional ability to manufacture and supply gaskets, is our extensive inventory of gasket material. At all times we stock a wide range of elastomeric, non-elastomeric, textile, and compressed sheet material in both sheets and rolls.
This, in addition to our stringent quality control program, ensures total consistency of the quality and tolerance accuracy of commercial and specification material alike.
For your convenience, all gasket material is available in whole rolls or cut lengths, sheets, strips of any width and finished gaskets. Materials listed in this brochure are the most commonly ordered in this.
This, in addition to our stringent quality control program, ensures total consistency of the quality and tolerance accuracy of commercial and specification material alike.
For your convenience, all gasket material is available in whole rolls or cut lengths, sheets, strips of any width and finished gaskets. Materials listed in this brochure are the most commonly ordered in this.
Frenzelit Compressed Gasket Sheet - Style: 7095
Novapress multi II Compressed Graphite Composite
novapress multi II is Frenzelit’s high temperature, high pressure compressed gasket material. This sheet’s high content of pure graphite has given it over 11 years of successful use in the field. It is easily identified by its blue colored “easy release” non-stick coating.
We manufacture the only Compressed gasket material on the market that; can withstand maximum temperatures in continuous operation, have a pH rating of 2-14 and have a non-stick coating that allows used gaskets to literally falloff the flange. The “Gasket Installation Procedure” must be followed to assure optimum performance in your gasket application.
We manufacture the only Compressed gasket material on the market that; can withstand maximum temperatures in continuous operation, have a pH rating of 2-14 and have a non-stick coating that allows used gaskets to literally falloff the flange. The “Gasket Installation Procedure” must be followed to assure optimum performance in your gasket application.
Phelps Compressed Gasket Sheet - Style: 7100
Performance Compressed Aramid Fiber Buna-N Nitrile Binder
Compressed sheet constructed with fibers providing chemical stability and heat resistance. The Nitrile binder offers good resistance to various oils, petroleum derivatives, low pressure steam, gases, etc. Resistance to high temperature creep with torque retention provides its sealing properties. This material is particularly good in 150 lb., and 300 lb., steam applications. Suitable for potable water. This material is green in color and has a smooth finish.
Compression Packing
Graphite Packing - Style: 2110
Flexible Pure Graphite/Inconel Wire/Centerlock
Braided from flexible pure graphite and inconel wire. Style 2110 contains high density pure graphite strands with inconel wire running down the center of each strand. All strands are then braided into the required square cross section. This construction creates a mechanical packing that can withstand working pressure and temperature that are impressive especially in valves.

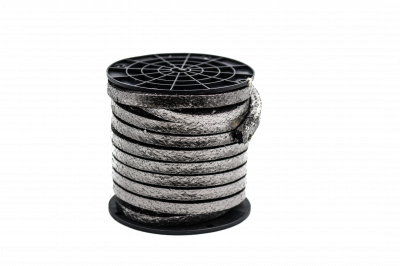

Graphite Packing - Style: 2105
Flexible Pure Graphite
Braided from flexible pure graphite. This form of pure graphite was developed as a direct result of our Style . Style 2105 is a high density pure graphite braid, not a man made carbon/graphite fiber. This packing has excellent high and low temperature operating ability. Style 2105 can be ran dry in pumps and withstand dramatic pressure and temperatures in valves.
Graphite/ PTFE Packing - Style: 2024
Graphite/PTFE /High Temp Lube/Centerlock
Centerlock® braided from pure CPL fiber. This packing is comparable to GFO® fiber in performance but at a lower cost. CPL fiber is made of: Carbon, a high purity graphite; Polytetrafluroethylene, PTFE; and high temperature inert Lubricant.
This unique packing has a graphite content of over 50%. That means CPL fiber is one of only two yarns to achieve this high graphite content. The end result of this high graphite content is longer wear, better heat transfer, and a broad pH range. Less than 50% PTFE in the yarn makes this packing kinder to the shaft while retaining good abrasion resistance.
This unique packing has a graphite content of over 50%. That means CPL fiber is one of only two yarns to achieve this high graphite content. The end result of this high graphite content is longer wear, better heat transfer, and a broad pH range. Less than 50% PTFE in the yarn makes this packing kinder to the shaft while retaining good abrasion resistance.

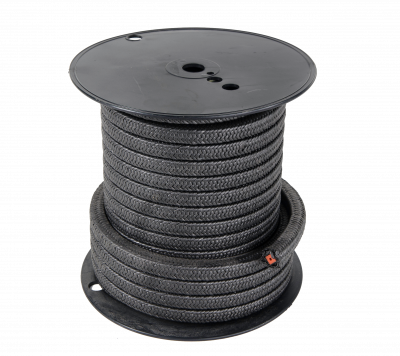

Graphite / PTFE Packing - Style: 2056
ZZR765 Spec Grade Silicone
The resilient core evenly spreads wear over the packing set when gland follower pressure is applied. This packing was especially designed for pumps where there is an axial or elliptical shaft run out. Made with a core of Style 7175, ZZR765 spec grade silicone, Style 2056’s core offers a combination of the highest chemical resistance and temperature ability. The outside braided yarn is a combination of graphite fluorocarbon and oil to promote the maximum sealing and wear resistance. Style 2056 also makes an excellent door gasket.
PTFE Packing - Style: 2033
PTFE suspensoid and silicone oil
Centerlock® braided from pure PTFE filament and thoroughly lubricated with a special high temperature lubricant which aids packing break in. This construction creates a soft, pliable packing with excellent resistance to chemicals and gases.

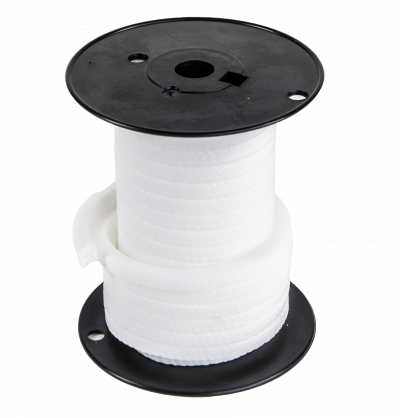

PTFE Packing - Style: 2031
Pure FDA Food Quality PTFE Filament Centerlock®
Centerlock® braided from pure FDA food quality PTFE filament and thoroughly lubricated with a premium grade edible oil. This construction creates a multi-purpose packing for use in the food and drink industry. All ingredients conform with the FDA and USDA requirements, title 21, paragraph 178.3570 (Lubricants), and paragraph 177.1550.
PTFE Packing - Style: 2440
Pure PTFE Cord/For Valves
This flexible valve stem packing is easy to install. Valve disassembly is not required. Simply wind the cord around the valve stem, push it down into the stuffing box and compress it by tightening the gland nut. It is that simple. The result is a perfect, high precision fit filling some of the flaws and irregularities caused by wear.
Once installed, a slight turn on the gland nut is all the maintenance usually required.
Once installed, a slight turn on the gland nut is all the maintenance usually required.
Aramid Packing - Style: 2046
Hi Temp Lube/Centerlock
This unique construction of Aramid fiber corners and CPL fiber body is specifically designed for abrasive applications where the media contains 20% to 30% solids and the particulate size to 50 to 80 microns. This is a range in which neither CPL Style 2024 or Aramid Style 2042 performs exceptionally well. Style 2046 also works as bull rings with CPL Style 2024 in applications where there are abrasives and/or excessive gland clearances.
