We have served this particularly demanding for decades. High temperature, pressure, and the use of abrasive chemicals makes this industry very unique. Furthermore, picking the right material is critical to ensure maximum operational up-time.
Common Applications
- Pumps & Valves
- Oil Tanks Gaskets
- Pump Case Gaskets
- Standard and Custom Flange Gaskets
Typical Operating Environment
- Moderate to High Speed Pump
- Petroleum, Oil, Gas
- Chemicals & Solvents
- Oil & Petroleum Derivatives
- Low to High Pressure
Gaskets
Standard flange gaskets are manufactured to be compatible with ANSI flanges in accordance with dimensional criteria shown in API Standards 601 and 605. A wide range of tooling contributes to our total capability to supply all standard sizes in 125/150 lb., 250/300 lb., ring and full face styles. We are also fully tooled for a specialized range of full face gaskets specified by the Department of Defense for use by the Departments of the Army, Navy, and Air Force.
Materials mentioned in this brochure are a small sample of our inventory, and represent the most commonly ordered materials. Matching PTFE envelopes are also available from stock, adding the flexibility to cope with extremely harsh chemical applications. As a major manufacturer of standard and military flange gaskets, our high speed production methods enable us to supply very competitively priced gaskets in large or small quantities”
Materials mentioned in this brochure are a small sample of our inventory, and represent the most commonly ordered materials. Matching PTFE envelopes are also available from stock, adding the flexibility to cope with extremely harsh chemical applications. As a major manufacturer of standard and military flange gaskets, our high speed production methods enable us to supply very competitively priced gaskets in large or small quantities”
Standard Flange Gaskets - Style: 1015, 1030
Ring Gaskets for 150 lb/300 lb ASME/ANSI Pipe Flanges
Standard Flange Gaskets - Style: 1115, 1130
Full Face Gaskets for 150 lb/300 lb ASME/ANSI Pipe Flanges
Material
An integral element of our exceptional ability to manufacture and supply gaskets, is our extensive inventory of gasket material. At all times we stock a wide range of elastomeric, non-elastomeric, textile, and compressed sheet material in both sheets and rolls.This, in addition to our stringent quality control program, ensures total consistency of the quality and tolerance accuracy of commercial and specification material alike. For your convenience, all gasket material is available in whole rolls or cut lengths, sheets, strips of any width and finished gaskets. Materials listed in this brochure are the most commonly ordered in this.

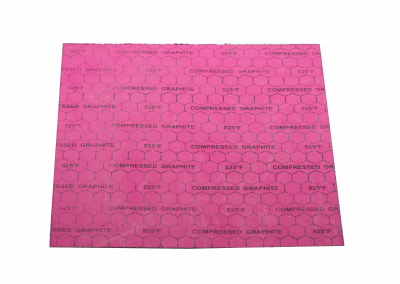

Frenzelit Compressed Gasket Sheet - Style: 7075
NOVATEC 825F Engineered Graphite
NOVATEC 825F is Frenzelit’s general service compressed gasket sheet made with 75% pure graphite. This unique gasket sheet has great flexibility. It is easily identified by the cranberry colored “easy release” non-stick coating. This sheet’s 45% compressibility allows for better sealing for those less than perfect flanges. This material does not cold flow when compressed with excessive torque. It likes stress and performs its best when compressed to 5000 PSI and beyond. This is an excellent steam sheet that works best in flanges.

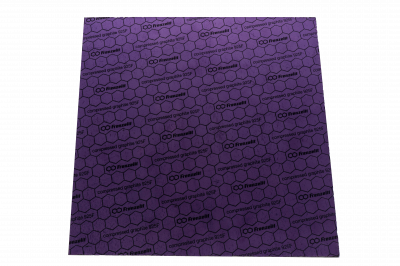

Frenzelit Compressed Gasket Sheet - Style: 7085
NOVATEC 925F Engineered Graphite
NOVATEC 925F is Frenzelit’s universal high pressure compressed sheet gasket material and it contains 75% pure graphite. This is an excellent chemical sheet that works best in flanges, pump casings, heat exchangers, lids, vessels, valve bodies and sight glasses. It can replace flexible graphite in many applications. This sheet is easily identified by its grape colored “easy release” non-stick coating.

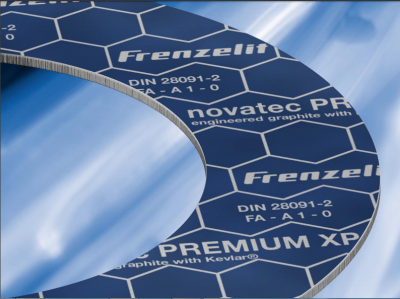

Frenzelit Compressed Gasket Sheet - Style: 7087
NOVATEC Premium Engineered Graphite with Kevlar®
This ultimate composition of graphite and Kevlar® offers complete new product qualities and easily outperforms any of the competition’s non-metallic gasket material. Primarily due to the high percentage of graphite used, it’s resistance to media and temperature is remarkable. NOVATEC Premium offers excellent long term stability and its resistance to stress relaxation exceeds the values of all conventional materials. This high density and high tensile strength enhance the NOVATEC Premium by offering excellent torque retention and superior sealability.
Frenzelit Compressed Gasket Sheet - Style: 7095
Novapress multi II Compressed Graphite Composite
Novapress multi II is Frenzelit’s high temperature, high pressure compressed gasket material. This sheet’s high content of pure graphite has given it over 11 years of successful use in the field. It is easily identified by its blue colored “easy release” non-stick coating.

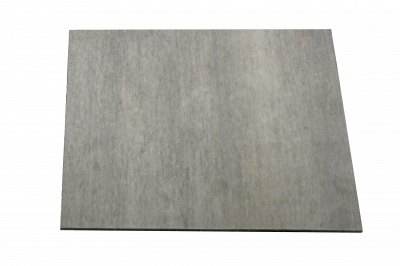

Frenzelit Compressed Gasket Sheet - Style: 7097
Novanpress multi EG Compressed Graphite Wire Reinforced Composite
Novapress multi EG is Frenzelit’s high performance gasket material. This sheet’s high content of pure graphite and stainless steel wire allows it to withstand extremely high pressures. This sheet has no competition.

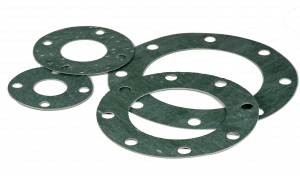

Phelps Compressed Gasket Sheet - Style: 7100
Performance Compressed Aramid Fiber Buna-N Nitrile Binder
Compressed sheet constructed with fibers providing chemical stability and heat resistance. The Nitrile binder offers good resistance to various oils, petroleum derivatives, low pressure steam, gases, etc. Resistance to high temperature creep with torque retention provides its sealing properties. This material is particularly good in 150 lb., and 300 lb., steam applications. Suitable for potable water. This material is green in color and has a smooth finish

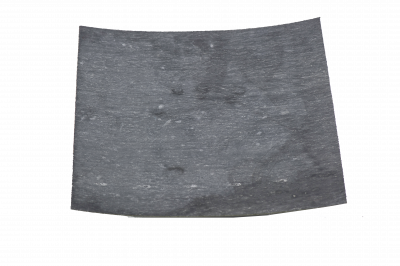

Phelps Compressed Gasket Sheet - Style: 7010
High Performance Compressed Aramid Fibre Blend With Buna-N Nitrile Binder
Style 7010 is a dense Compressed Gasket Sheet reinforced with an Aramid fiber blend with a Nitrile rubber binder. This sheet has a special high temperature anti-stick coating applied to both sides. Our material is engineered for super heated steam, thermal cycling, boilers, heat exchangers and is recommended for sealing gases, fuels, oils and refrigerants. This material’s high tensile strength gives it excellent resistance to hot creep relaxation at elevated gasket stress loads and has very good torque retention.
Elastomers - Style: 7126
Commercial Buna N-Nitrile
An above average commercial Nitrile material with a good high and low temperature capability. Full rolls, part rolls and sheets are available from stock. Roll lengths vary and should be verified. Sizes and hardnesses other than those shown are available upon request. This material is black in color and has a smooth finish.
ASTM D 2000 86e, SAE J200, 1 BE 609
ASTM D 2000 86e, SAE J200, 1 BE 609
Elastomers - Style: 7136
Military Specification Buna-N Nitrile
A premium specification grade of Nitrile material with a wide high and low temperature differential. Compatible with a wide range of media including aggressive petroleum products. Full rolls, part rolls and sheets are available from stock. Roll lengths vary and should be verified. Sizes and hardnesses other than those shown are available upon request. This material is black in color with a smooth finish.
Mil-R-6855 CL1 GR 60
Mil-R-6855 CL1 GR 60
Compression Packing
PTFE Packing - Style: 2034
Pure PTFE/Centerlock
Pure PTFE Filament and Lubricated with PTFE Suspensoid. Centerlock® braided from pure PTFE filament and lubricated with PTFE suspensoid. This construction creates a dense firm packing with excellent chemical resistance and is impervious to vapor and gases. Conforms with Mil-P-24396, Type B.
Aramid Packing - Style: 2046
Hi Temp Lube/Centerlock
This unique construction of Aramid fiber corners and CPL fiber body is specifically designed for abrasive applications where the media contains 20% to 30% solids and the particulate size to 50 to 80 microns. This is a range in which neither CPL Style 2024 or Aramid Style 2042 performs exceptionally well. Style 2046 also works as bull rings with CPL Style 2024 in applications where there are abrasives and/or excessive gland clearances.
Graphite/ PTFE Packing - Style: 2024
Graphite/PTFE /High Temp Lube/Centerlock
Centerlock® braided from pure CPL fiber. This packing is comparable to GFO® fiber in performance but at a lower cost. CPL fiber is made of: Carbon, a high purity graphite; Polytetrafluroethylene, PTFE; and high temperature inert Lubricant. This unique packing has a graphite content of over 50%. That means CPL fiber is one of only two yarns to achieve this high graphite content. The end result of this high graphite content is longer wear, better heat transfer, and a broad pH range. Less than 50% PTFE in the yarn makes this packing kinder to the shaft while retaining good abrasion resistance.
Metal Gaskets
Style: 9000
Spiralwound with Compression Ring
Spiralwound with compression ring to API 601 to suite ASME/ANSI B16.5 Flanges, Normally supplied with a Carbon steel compression ring outside of the spirals. Available in a wide variety of sizes, pressure and temperature ranges. Also available Style 9000 gaskets that comply with the requirements of MIL-G-24716.
The compression ring facilitates accurate centering, easier, quicker installation and acts as a radial pressure retaining ring while limiting the “crush” of the spiral/filler section.
The compression ring facilitates accurate centering, easier, quicker installation and acts as a radial pressure retaining ring while limiting the “crush” of the spiral/filler section.
‘O’ Rings, Molded Parts
Custom & Standard O-Rings
Standard ‘O’ Ring Compounds
A full range of quality ‘O’ rings are available in commercial and military specification material. In addition to the American Standard AS series, non-standard requirements can be accommodated by either vulcanizing from close tolerance ‘O’ ring cord or choosing from a wide availability of metric sizes.
Standard Compounds : PB70, PE70, PN70, PV75, PS70, PF70, PTFE
Standard Compounds : PB70, PE70, PN70, PV75, PS70, PF70, PTFE
