Non Elastomers

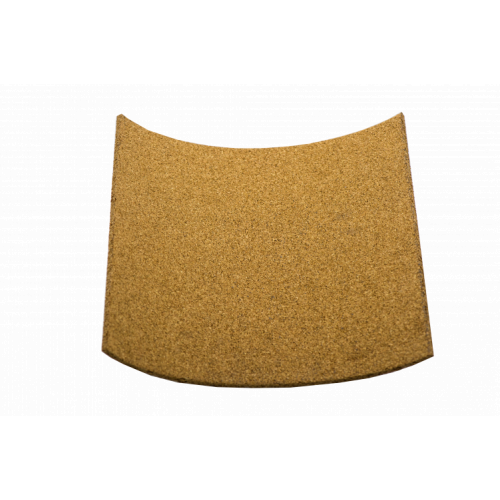

Style 7550 - Composition Cork

Cork is a natural, renewable, sustainable raw material. Fine granules of this Cork combined with Resin binder resist separation and deterioration. Cork also offers high chemical resistance, and reduces levels of transmitted vibration - an excellent specification grade multi-purpose material. Available in thinner gauges than most other gasket material. Full rolls, part rolls and custom sheets are available.

For length / width / thickness options other than listed here, please use live web-chat or call us @ 1-800-876-SEAL - we will be deligted to help you
Phelps Style 7550 - Composition Cork Sheet, anti-vibration, noise isolation, expansion joints, bulletin/notice boards
CUSTOMIZE AND SEND REQUEST
Temperature
250°F/121°C
Applications

Bulletin or notice boards, Memo boards
Thermal insulation applications, Coasters
Walls, Flooring, and Interior cealing material
Anti-vibration, vibration dampening, and noise isolation applications

Specifications

Mil-C-15116 C Type 2
Federal HH-C-576  Class 1, Type II Class 2
ASTM D 1170-62T P2117A / P2127A / P2118A / P2128A
Gas leakage (DIN 3535/6): <0.1ml/min

Compressibility
@ 100 PSI Load: 35% - 55%
Recovery: 70%
