Weather Stripping Gasket

Style 7402 - Medium Density Neoprene Sponge

This medium density sponge is manufactured in a closed cell construction providing low torque gasket material impervious to a variety of media.

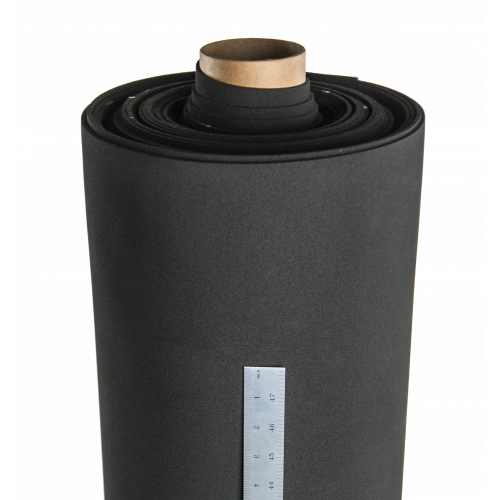

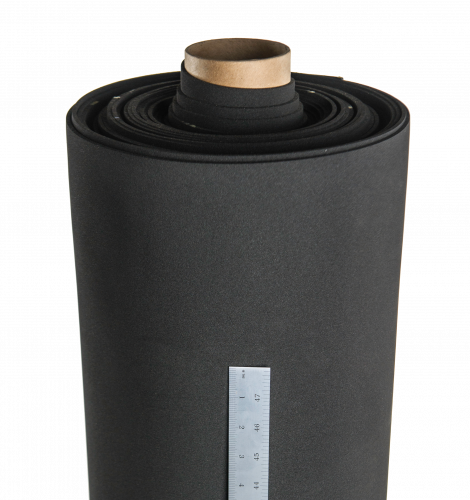

Phelps Style 7402 - Neoprene Blend Closed Cell Sponge Roll - Medium Density

CUSTOMIZE AND SEND REQUEST
REQUEST A QUOTE
Temperature
-70F/-57C to 200F/93C
Color
Black, with cellular finish
Composition
Closed Cell Neoprene Sponge - Medium Density
Applications
A closed cell construction offers low torque material, impermeability to air, gases and liquids. Fire Flame retardant properties make it useful for the electrical switchboard and construction industries
Specifications
Mil-R-6130C Type 2 GR.A ASTM D 1056-67 SCE-42 ASTM D 1056-78 RE-42 ASTM D 1056-87 SCE-42 FMVSS-302, SAE-J-18 UL-94-HBF, UL-94-HF1
Density
Medium, 6 to 8 lbs. per cubic ft.
Compression Deflection
25% @ 5-9 PSI
Water Absorption
5% maximum
Media Exposure
Weather, water, aliphatic hydrocarbon (gasoline, kerosene), hydraulic silicates, oil, ultra-violet
