Close Cell Sponge

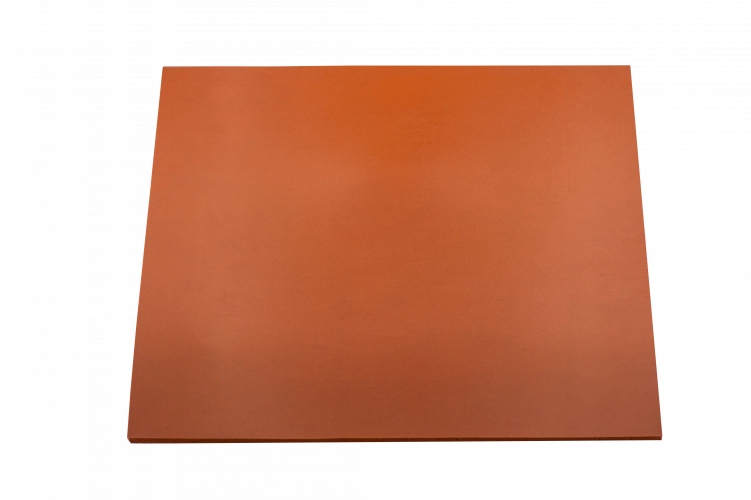

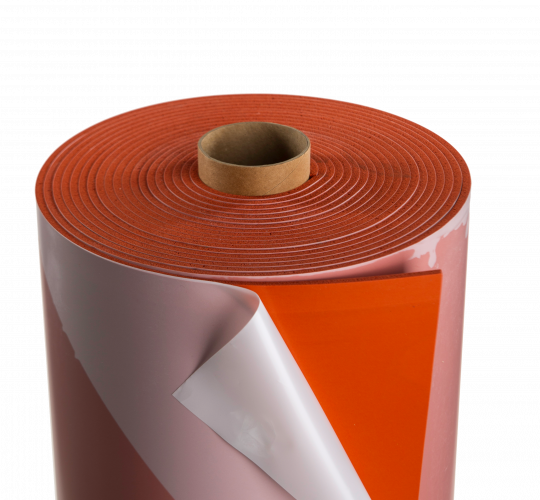

Style 7432 - Medium Density Silicone Closed Cell Sponge

This soft density Silicone sponge is manufactured in a closed cell construction. It is a high temperature, low torque gasket material impervious to a wide range of media with excellent resistance to atmospheric attack. Therefore, silicone sponge can achieve IP65 and IP66 ratings for sealing performance. This gasket material retains flexibility at high and low temperature, and offers excellent compression set resistance. Phelps can do die-cutting, waterjet cutting, strip slitting to meet your application requirements.

For durometer / dimensions / thickness options other than listed here, please call us @ 1-800-876-SEAL, or add notes after clicking on "Request a Quote"
Phelps Style 7432 - Silicone Closed Cell Sponge Rubber

CUSTOMIZE AND SEND REQUEST
Temperature
-67°F/-55°C to 400°F/204°C
Applications

Flame retarding applications
Weatherproofing and weatherstripping
HVAC Sealing applications
Sealing NEMA enclosures to meet IP65 and IP66  for equipment access panels

Specifications

AMS 3195 E
Mil-R-46089
Mil-R-6130
ASTMD1056

Compression Deflection
6-14
Water Absorption
5% Max
Environmental Exposure
Ozone, oxidation environment
Extreme weather elements, and water
Hydraulic phosphates, alcohol, gases
