Phelps Compressed Gasket Sheet

Style 7100 - Compressed Aramid Fiber With Buna-N Nitrile Binder

Compressed sheet constructed with fibers providing chemical stability and heat resistance.  The Nitrile binder offers good resistance to various oils, petroleum derivatives, low pressure steam, gases, etc.  Resistance to high temperature creep with torque retention provides its sealing properties. This material is particularly good in 150 lb., and 300 lb. flange gaskets, steam applications. Suitable for potable water.

For assistance chosing the right material for your application please call us @ 1-800-876-SEAL, or add notes after clicking on "Request a Quote"

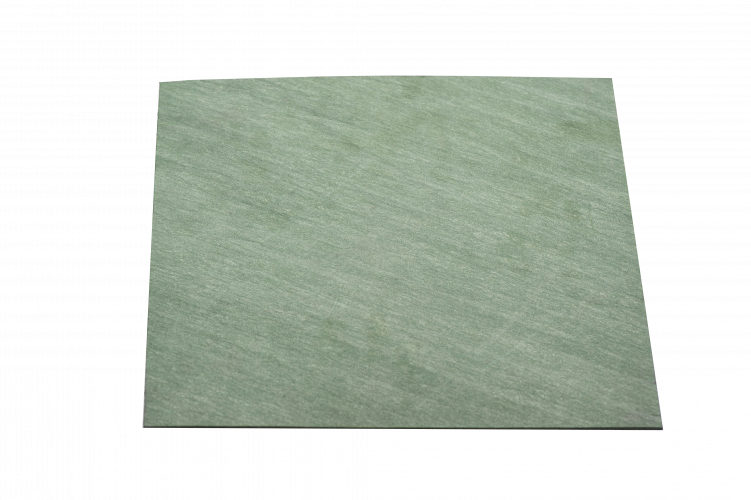

Phelps Style 7100 - Compressed Aramid with Buna-N Nitrile Gasket sheet

CUSTOMIZE AND SEND REQUEST
pH
3-11
Pressure
1500 PSI
Temperature
700°F Maximum | 520°Continuous | 450°F Steam
Composition
Fiber: Aramid Blend | Binder: Nitrile
Applications

Suitable for potable water applications (flange gaskets)
Resistance to high temperature creep with torque retention
Particularly good in 150 lb., and 300 lb., steam applications

PXT Values
For 1/16" Thickness: 350,000 | For 1/8" Thickness: 210,000
Specifications

ASTM F 104 (Tests 1/32" Thick)

F 38 B Creep Relaxation
22 Hrs @ 212°F (100°C): 9.3%
22 Hrs @ 392°F (200°C): 16.9%

F 146 Thickness Increase
Oil #3, 5 Hrs @ 300°F: 5% - 7%
Fuel B, 5 Hrs @ 73°F: 5% - 7%

F 36A
Compressibility @ 5000 PSI Gasket Load: 8.5% +/- 1%
Recovery: 57%

DIN 3535 Part 6 Gas Leak Rate
Nitrogen @ 580 PSI/Gasket Load 4640 PSI: .05 cc/min

DIN 52913 Stress Relaxation @ 7250 PSI
16 Hrs @ 347°F: > 5220 PSI (36 MPA)
16 Hrs @ 572°F: > 4060 PSI (28 MPA)

Hot Compression Test (1/16" Thickness Used For Testing)
7250 PSI @ 68°F(20°C): 8.2% Total
7250 PSI @ 572°F (300°C): 15% Total

Tensile
F 152 Tensile Strength: 1500 PSI
Compatible Environmental
High temperature flange applications (high temp steam, chemicals, gases)
The nitrile binder offers good resistance to various oils, petroleum derivatives
Resistance to high temperature creep with torque retention provides its sealing properties
